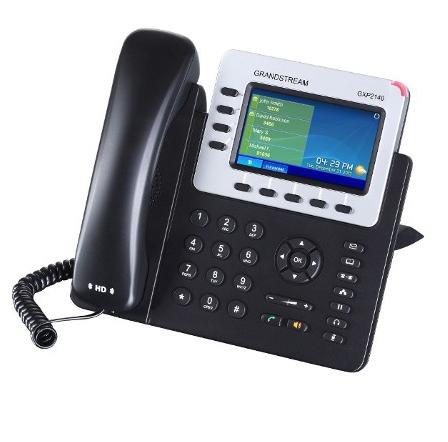

The GXP2140 is a state-of-the-art enterprise grade IP phone that features up to 4 lines, 4.3 inch TFT Color LCD, 5 XML programmable
context-sensitive soft keys, dual Gigabit network ports, integrated PoE and Bluetooth, 5-way voice conferencing, and Electronic Hook
Switch (EHS). The GXP2140 delivers superior HD audio quality on the handset and speakerphone, rich and cutting edge telephony
features, personalized information and customizable application service, automated provisioning for easy deployment, advanced security
protection for privacy, and broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms. The GXP2140 is
compatible with the GXP2200 Extension Module, allowing for quick and easy access to up to 160 contacts at the touch of a finger. Ideal
for enterprises and SMBs, the GXP2140 is the perfect choice for users looking for a high quality, feature rich multi-line executive IP phone
with advanced functionality and performance
Feature Highlights
- 480x272 TFT color LCD
- Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports, PoE, Bluetooth, USB, EHS (Electronic Hook-Switch) with Plantronics headsets, and capability to connect/power up to 4 cascaded extension modules with LCD display
- Up to 4 SIP accounts, 5 programmable context-sensitive soft keys, and up to 5-way conferencing
- Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
- Integrated real-time web applications [weather, currency, RSS news (pending), etc.]
Protocols / Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP,STUN,SIMPLE,LLDP,LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
Network Interfaces
- Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display
- 4.3 Inch (480x272) TFT colour LCD
Bluetooth
Feature Keys
- 4 Line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation / menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-
Voice Codec
- Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), and iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP NFO)
Auxillary Ports
- RJ9 headset jack 9allowing EHS with Plantronics headsets), USB, extension module port
Telephony Features
- Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call appearance (SCA)/bridged-line appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones andmusic on hold, server redundancy and failover.
Sample Applications
- Google Voice (Pending), weather, stock, currency, news (pending), Internet radio (pending), last.fm (pending), GMI available for advanced custom application development.
HD Audio
- Yes, both on handset and speakerphone
Extension Module
- Yes, up to 4 GXP2200EXT modules
Base Stand / Wall Mountable
- Yes, allows 2 angle positions
QoS
- Layer 2 (802.1Q, 802.1p) and layer 3 (ToS, DiffServ, MPLS) QoS
Security
- User and admin level passwords, MD5 and MD5-sess based authentication, AES based secure config. file, SRTP, TLS, 802.1x media access control
Multi-Language
- English, Arabic, Chinese, Croatian. Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Turkish
Upgrade/Provisioning
- Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Power & Green Energy Efficiency
- Universal power adapter included: input: 100-240V; Output: +12V, 1.5A;
- Intergrated Power-over-Ethernet (802.3af)
- Max power consumption 18W (power adapter) or 25.5W (PoE)
Physical
- Dimension: 222mm (W) x 210mm (L) x 93mm (H);
- Unit weight: 0.98kg; Package weight: 1.63kg (pending)
Temperature & Humidity
- 0 ~ 40C (32 ~ 104F), 10 ~ 90% (non-condensing)
|
