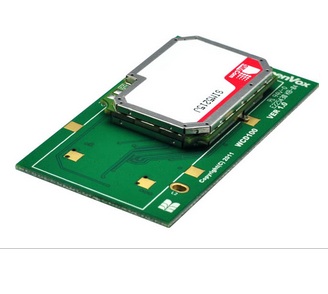

The WCD100 module allows OpenVox wireless G410 series cards to support WCDMA connection to the VoIP devices. Each module offers one WCDMS channel.
Technical Specifications:
- We have three kinds of modules:
- SIM5215A：GSM850MHz/EGSM900MHz/DCS1800MHz/PCS1900MHz/WCDMA850MHz/WCDMA1900MHz
- SIM5215E：GSM850MHz/EGSM900MHz/DCS1800MHz/WCDMA900MHz/WCDMA2100MHz
- SIM5215J：GSM850MHz/EGSM900MHz/DCS1800MHz/PCS1900MHz/WCDMA850MHz/WCDMA2100MHz
- Output power
- UMTS1900/850: 0.25W
- UMTS2100/900: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
- Supplyvoltagerange: 3.3~4.2V
- Operation temperature range: -30℃to+80℃
- Extended operation temperature: -40℃to+85℃
|
