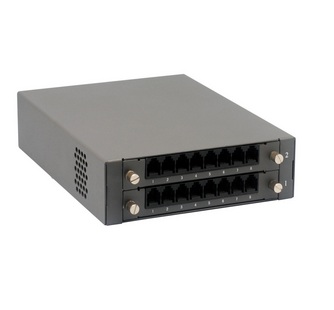

Analogni gateway VoxStack VS-GW1202-16S sa 16 FXS portova, podržava i T.38 Fax protokol, DHCP klijent/server, konfiguraciju putem WEB sučelja, G.168 otklon jeke. Samostalni je uređaj koji nije namijenjen za ugradnju u komunikacijske ormare, idealan je za manje i srednje tvrtke.
- SIP
- 16*FXS, T.38 FAX
- G.711A, G.711U, G.729, G.722, G.723, ILBC, GSM
- DHCP Client/Server
- WEB.SSH configuration
- G.168 Echo Cancellation
Technical Specifications:
- 16 FXS ports
- 2 LAN ports
- Storage temperature range: -20~70℃
- Operation temperature range: 0~40℃
- Operation humidity range: 10%~90% non-condensing
- Power source: 12V DC/4A
- Max power: 16W
- Dimension: 15cm*19cm*4.5cm
- Weight: 732g
Features:
- Simple and convenient configuration via Web GUI
- Abundant Log Info
- Open API interface（AMI）
- Support T.38 fax relay and T.30 fax transparent,can continually fax multiple page
- Echo cancellation and Static jitter buffer
- Support DTMF relay
- Support Ring cadence and frequency setting
- Support volume control
- Support MWI(Message waiting indicator)
- Support DHCP、DNS/DDNS、NAT networking
- Support diverse SIP protocols
- Diverse extensible applications, such as IVR,DISA
- Support NTP time synchronization and client time synchronization
- Support modify username and password for web login
- Support SSH remote operation
- Support update firmware online
- Support configuration file backup and upload
- Support for custom scripts, dialplans
- Support restore the factory settings
- Support VAD and CNG
