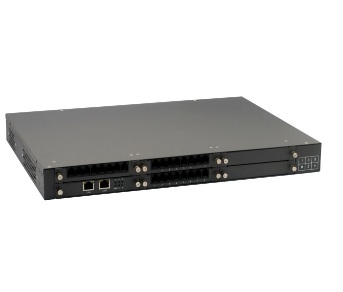

Analogni gateway VoxStack VS-GW1600-24S sa 24 FXS portova, podržava i T.38FAX protokol, DHCP klijent/server, konfiguracija putem WEB sučelja, G.168 otklon jeke. Uređaj je u 19U kućištu te je spreman za ugradnju u telekomunikacijske ormare, idealan za manje ili srednje tvrtke i telekomunikacijske sustave. Modularni uređaj kojega je moguće proširiti dodatnim VS-GWM800S modulima do ukupno 40 FXS portova.
Technical Specifications:
- 24 FXS ports
- 2 LAN ports
- Storage temperature range: -20~70℃
- Operation temperature range: 0~40℃
- Operation humidity range: 10%~90% non-condensing
- Power source: 100-240V/1-2A
- Max power: 60W
- Dimension: 44cm × 4.5cm × 30cm
- Weight: 4353g
Features:
- Simple and convenient configuration via Web GUI
- Abundant Log Info
- Open API interface（AMI）
- Support T.38 fax relay and T.30 fax transparent,can continually fax multiple pages
- Echo cancellation and Static jitter buffer
- Support DTMF relay
- Support Ring cadence and frequency setting
- Support volume control
- Support MWI(Message waiting indicator)
- Support DHCP、DNS/DDNS、NAT networking
- Support diverse SIP protocols
- Diverse extensible applications, such as IVR,DISA
- Support NTP time synchronization and client time synchronization
- Support modify username and password for web login
- Support SSH remote operation
- Support update firmware online
- Support configuration file backup and upload
- Support for custom scripts, dialplans
- Support restore the factory settings
- Support VAD and CNG
