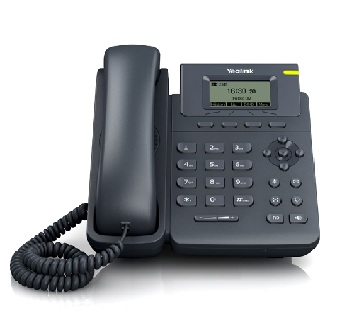

Yealink SIP-T19 - 1 linija, SIP

The SIP-T19 is one of Yealink’s latest answers for the entry-level IP phone that offers features and performance normally associated with much more advanced phones. The quite intentional choice of high-quality materials, combined with a generously large 132 x 64-pixel graphical LCD that gives a clear 5-line display, guarantees both a smoother user experience and easy access to much more visual information at a glance. The SIP-T19 supports a single VoIP account, simple, flexible and secure installation options,plus IPv6 and SRTP/ HTTPS/ TLS, VLAN and QoS. It includes headset use, is wall-mountable and has been designed very specifically for better business.

Features

• 132 x 64-pixel graphical LCD
• Single VoIP account
• Two-port 10/100 Ethernet Switch, integrated PoE
• Full-duplex speakerphone
• Headset, wall mountable
• XML remote phonebook

Audio Features

• Full-duplex hands-free speakerphone with AEC
• Codecs: G.711(A/μ), G.723, G.729AB, G.726
• DTMF: In-band, out-of-band(RFC 2833) and SIP INFO
• VAD, CNG, AEC, PLC, AJB, AGC

Directory

• Local phonebook up to 1000 entries
• Black list
• XML remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

Phone Features

• 1 VoIP account
• Call hold, mute, DND
• One-touch speed dial, hotline
• Redial, call return, auto answer
• Call forward, call waiting, call transfer
• Group listening, SMS
• Local 3-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Keypad lock, emergency call
• Set date time manually or automatically
• Dial Plan, XML Browser, action URL&action URI

IP-PBX Features

• Anonymous call, anonymous call rejection
• Message waiting indicator (MWI)
• Voice mail, call park, call pickup
• Intercom, paging, music on hold
• Call completion, hot-desking

Display and Indicator

• 132x64-pixel graphical LCD
• LED for call and message waiting indication
• Intuitive user interface with icons and softkeys
• National language selection
• Caller ID with name, number

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• IPv6
• NAT transverse: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• IEEE802.1X

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• BroadSoft device management
• Zero-sp-touch
• Provisioning server redundancy supported
• Reset to factory, reboot
• Package tracing export, systemlog

Physical Features

•  2xRJ45 10/100M Ethernet ports
•  29 keys including 4 soft keys
•  1xRJ9 handset port
•  1xRJ9 headset port
•  Wall mountable
•  Power adapter: AC 100~240V input and DC 5V/600mA Output
•  Power consumpt ion (PSU) :  1.24-2.62W
•  Dimension (W*D*H*T): 185MM*188MM*143MM*38MM
•  Operating humidity: 10~95%
•  Operating temperature: -10~50°C
