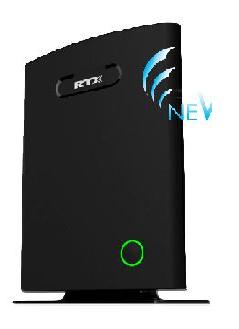

RTX 8660 Base Station - DECT GAP, PoE, 10 ist. poziva, 10 dodatnih slušalica

IP DECT rješenje iz RTXa predstavlja kompletan sustav za bežičnu VoIP komunikaciju, uz skalabilnost koja do sada nije bila dostupna u ovom segmentu. Sustav može rasti od 1 do 40 baza i do 200 korisnika. Nadalje, telefonski uređaji sa zaslonom u boji visoke razlučivosti podržavaju CAT-iq, te širokopojasni audio na baznim stanicama. Sustav podržava DECT standard u svim glavnim regijama u svijetu. Prelazak s jedne bazne stanice na drugu tijekom trajanja poziva odvija se bez prekidanja veze, dok zvuk ostaje besprijekoran.

Dodatna slušalica: http://www.voip-shop.com.hr/product_info.php/products_id/2087

System Features

DECT GAP/CAT-iq

• Wideband Audio (HDSP) Basic and Extended
• 12 Slot radio with up to 10 voice channels active
• Worldwide Radio power levels/frequency bands
• Scalable system from 1 to 40 bases in same network
• 200 users (200 handsets registered)
• Power over Ethernet
• Over the Air synchronization
• Support software download to wireless terminals
• LED status indication
• Seamless handover
• Repeater support

Handset Features

• Wideband Audio (G.722)
• 2" TFT display with graphical user interface 176 x 220 pixel 262K colour
• Well-proven graphical MMI with wallpapers
• Polyphonic ringtones
• Phonebook: 200 central and 100 local entries
• GAP and CAT-iq compliant
• Headset connector (3.5mm)
• SW upgrade over-the-air
• Wideband two-way speaker phone mode
• Vibrator

Audio

• 10 audio channels using G.726/G711 codec
• 10 audio channels using G.729 (optional DSP)
• 4 CAT-iq wideband audio channels using G.722
• RFCC3711 SRTP

Battery Lifetime

• Talk time: >18 hours
• Standby: >200 hours

System

• 200 users (200 handsets registered)
• 40 bases can be connected into one PBX system

Network

• TFTP, HTTP, HTTPS for remote configuration and firmware download
• VLAN
• DHCP options 66 and custom
• Embedded web server for easy configuration

Power Supply

• Power over Ethernet (PoE): 36-60 V - IEEE802.3af (Class 2)
• Max power consumption: 5W

Other

• LED status indication
• Firmware update

DECT

• Frequency bands coverage: DECT, EU/AU/NZ, US/CA, TW & LATAM
• Four power levels (14, 17, 20 and 24 dBm)
• Seamless handover using Connection Handover
• Wideband Voice (HDSP) Basic Interoperability, Phase I (CAT-iq 1.0)
• Authentication/Encryption of base and handset

Antennas

• 2 internal omni-directional antennas
• Range: Indoor: 50m
• Range: Outdoor: 300m

Additional Features

• Repeaters supported
• Fast antenna diversity switching
• Synchronization via air interface

Ethernet

• Connector: RJ 45
• Interface to IP network: 10/100 BASE-T IEEE802.3
• IPv6 support
• IPSec

Mechanics

• Housing: IP20
• Dimensions: 227 x 279 x 39mm (HxWxD)
• Temperature Range: -5 to + 55 Celsius

Approvals

• EN 301406 (TBR6)
• EN 30176 - 2 (TBR10)
• EN 60950 - 1 (Safety)
• - IEC60950 -1
• - CSA c-CSA-us or UL60950 - 1
• EN 301489 (EMC, ESD)
• RF (EMF, SAR)
• FCC part 15D, conducted & radiated
• FCC part 15B
• RSS213

SIP

• SIPS
• RFC2833 In-Band DTMF/Out of band DTMF support
• RFC2976 The SIP INFO method
• RFC3261 compliance
• Digest/basic authentication
• RFC3263, DNS SRV redundant server support
• RFC3264 Offer/answer
• RFC3326 The Reason Header Field for SIP
• RFC3489 STUN
• RFC3515 REFER
• RFC3581 RPORT
• RFC3842, RFC3265 Message Waiting Indication, subscription for MWI events
• RFC3892 SIP Referred-By Mechanism
• RFC3960 Early Media and Ringing
• Tone Generation in SIP
