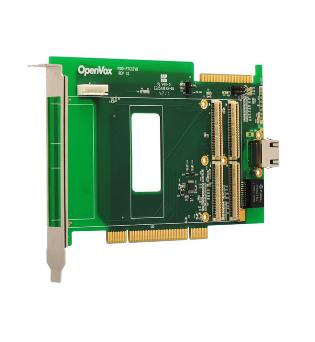

OpenVox V100-PTCC - Evaluation Board for V100-PTMC

Overview

The V100-PTMC is a PMC for transcoding. In addition, it is a PTMC for extending PMC to support stand telecom and telephony interfaces. It is usable with a wide range of PCC, PT2CC, PT3CC, PT5CC and can provide CompactPCI/fornt-panel Gbe/Backplane Gbe/Local CT media/control flow paths. These features can save the cost and support flexible applications.

OpenVox design and manufacture V100-PTCCEVB evaluation board to help the customers evaluate the V100-PTMC on standard PCI bus.

Feature

• Adapt V100-PTMC (PMC/PT2MC/PT3MC/PT5MC)
• Large opening under V100-PTMC improves forced air cooling
• UART,H.100 edge fingers available
• Fully transparent to all software and does NOT require any drivers of its own
• Universal slot support: 3V/5V, 32bit, 33/66 MHz

Dimensions

• 168.3x106.7mm (PCB)

Power Requirments

• 200mA @3.3V ( No include V100-PTMC)

Operating Temperature Range

• 0 – 50 °C

Humidity

• 10 TO 90% NON-CONDENSING
